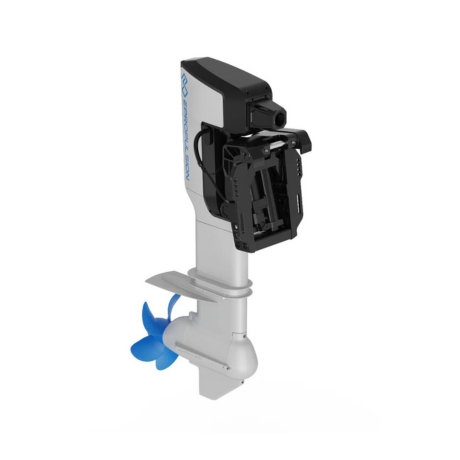

X20 Electric Outboard Motor
The X Series electric outboard motors is a line of high-performance
electric outboard motors designed to meet the demands of
recreational, commercial, and industrial boating. Combining cutting
-edge technology with eco-friendly engineering, the X Series offers
powerful and efficient propulsion for a variety of vessels.
Key Features:
Powerful Performance
The X Series includes three models—X12, X20, and X40—delivering power
outputs of 12 kW, 20 kW, and 40 kW, respectively. These motors are
designed to provide smooth, responsive power, comparable to traditional
combustion engines, with the added benefits of quiet operation and zero
emissions.
Advanced Design
Featuring a fully integrated, compact design, the X Series outboards
come equipped with electric steering, power trim and tilt, and intuitive
driving assistance technologies. This ensures precision handling and an
improved boating experience.
Eco-Friendly Operation
As fully electric motors, the X Series produces no harmful emissions,
contributing to a cleaner, more sustainable marine environment. Their
high-efficiency design minimizes energy consumption without
compromising performance.
Durability and Reliability
Built with marine-grade materials, the X Series is highly durable and
resistant to harsh environmental conditions. It’s ideal for saltwater
and freshwater applications.
Versatility
The X Series is compatible with a range of boats, from small recreational
vessels to larger commercial crafts. Each model is optimized to meet
specific power and performance needs.
Specification
| Short Shaft | Long Shaft | ||
| Weight | 79kg (174.2 lbs) | 81kg (178.6 lbs) | |
| Shaft Length | 508mm (20″) | 635mm (25″) | |
| Dimensions (LxWxH) | 674x360x1229mm (26.5×14.2×48.4″) | 674x360x1356mm (26.5×14.2×53.4″) | |
| Input Power | 20 kW | ||
| Nominal Voltage | 96 VDC | ||
| Cooling System | Natural Cooling | ||
| Rated RPM | 1200 to 1800 | ||
| Trim and Tilt | Power Trim & Tilt | ||
| Trim/Tilt Angle | -4° to 61° | ||
| Steering | Integrated Electric Steering | ||
| Steering Angle | ±45° | ||
| Propeller |
15″x 10 3/4″ Propeller (Available in L&R Rotation) 13 3/8″x 16 3/4″ Propeller (Available in R Rotation) |
||
More info on our website: https://www.fivepp.com.sg/
Check our social media page: https://www.facebook.com/fiveab/
